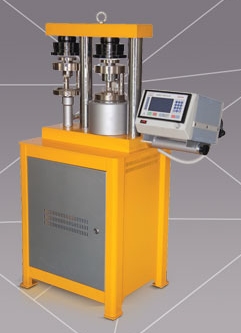

The machine is designed to be fully automatic.
The machine is equipped with an LCD Data Acquisition Control System.
The load rate is automatically controlled upon the samples.
The machine is provided with a double testing chamber. It performs flexure test for the size (40 x 40 x 160 mm) and compression test on cubes of size (50 x 50 x 50 mm).
The test results can be transferred to a computer (should be ordered separately) or a thermal printer (should be ordered separately).
The calibration can be done easily in 1, 2 .. 5 pts

Dimensions: 95 x 60 x 140 mm
Weight: 323kg

Specifications

• Flexure Capacity: 15 kN
• Compression Capacity: 250 kN
• Graphical LCD Data Acquisition Control System
• Automatic Load Rate upon sample.
• Double testing chamber.

More about cement and mortar testing equipment can be found here.
